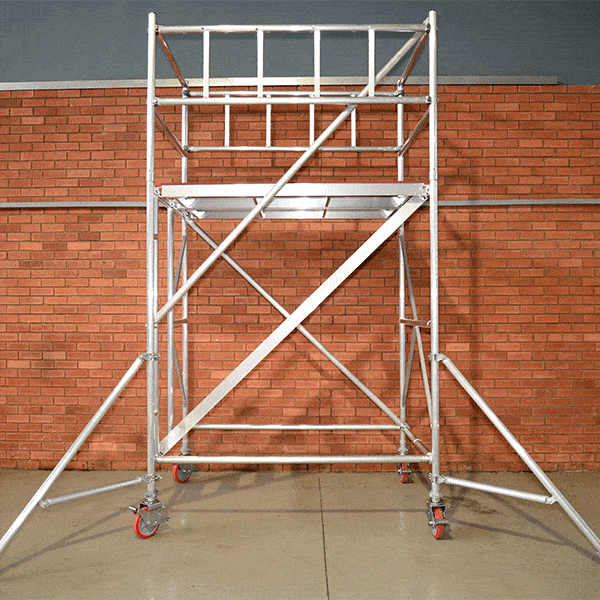

Aluminium Stairway Tower

  • Manufactured in accordance to National Standards SANS 51004:2009 (BS EN1004:2004 material referring to BS EN 1999.1.1:2007).
  • Manufactured from structural aluminium alloy 6005 T6.
  • All stairway towers supplied with walkthrough frame. No need to climb over braces to gain access.
  • Full guardrail frame for extra safety.
  • Brace claws casted from industrial grade aluminium.
  • Platforms available in plywood deck.
  • Access platforms fitted with close able trap door.
  • Platforms fitted with lockable safety lathes to prevent parts from being blown off, or being displaced.
  • Purpose made ladder with 110mm wide step for easy and comfortable access.
  • Lockable and height adjustable castors for levelling as well as quick and easy relocation.
  • Three sizes adjustable stabilizers, supplied in accordance with height of tower.
  • Plywood toe board sets to prevent tools from being dropped from working platform.
  • Lightweight for easy build application.
  • Combination configuration possible and available.
  • Actual footprint 1340 x 2000 mm.
  • Available in 2 meter height increments.
  • Maximum load weight on platform – 200kg/m2.
  • Maximum safe load of tower – 750kg.
  • Mobile tower maximum height of working platform – 14.5m.
  • Static tower to maximum height of 22.5m tied to structure

Aluminium Narrow Span Tower

  • Manufactured in accordance to National Standards SANS 51004:2009 (BS EN1004:2004 material referring to BS EN 1999.1.1:2007).
  • Rating – industrial heavy duty
  • Manufactured from structural aluminium alloy 6005 T6.
  • Brace claws casted from industrial grade aluminium.
  • Full guardrail frame for extra safety.
  • Platforms available in plywood deck.
  • Access platforms fitted with close able trap door.
  • Platforms fitted with lockable safety lathes to prevent parts from being blown off, or being displaced.
  • Lockable and height adjustable castors for levelling as well as quick and easy relocation.
  • Supplied with European standard adjustable castor extension legs.
  • Plywood toe board sets to prevent tools from being dropped from working platform.
  • Lightweight for easy build application.
  • Combination configuration possible and available.
  • Available in 1 meter height increments.
  • Actual footprint 730 x 2000mm
  • Maximum load weight on platform – 200kg/m2.
  • Maximum safe load of tower – 750kg.
  • Mobile tower maximum height of working platform – 8.5m.

Aluminium Wide Span Tower

  • Manufactured in accordance to National Standards SANS 51004:2009 (BS EN1004:2004 material referring to BS EN 1999.1.1:2007).
  • Rating – industrial heavy duty
  • Manufactured from structural aluminium alloy 6005 T6.
  • Brace claws casted from industrial grade aluminium.
  • Platforms available in plywood deck.
  • Full guardrail frame foe extra safety.
  • Access platforms fitted with close able trap door.
  • Platforms fitted with lockable safety lathes to prevent parts from being blown off, or being displaced.
  • Lockable and height adjustable castors for levelling as well as quick and easy re-location.
  • Three sizes adjustable stabilizers, supplied in accordance with height of tower.
  • Plywood toe board sets to prevent tools from being dropped from working platform.
  • Lightweight for easy build application.
  • Combination configuration possible and available.
  • Available in 1 meter height increments.
  • Actual footprint 1340 x 2000mm.
  • Maximum load weight on platform – 200kg/m2.
  • Maximum safe load of tower – 750kg.
  • Mobile tower maximum height of working platform – 14.5m.
  • Static tower to maximum height of 22.5m tied to structure
